Packing into your rental car, van, box truck or trailer
The Vault Pro is 54 × 19 × 29 in (137 × 48 × 74 cm).
With the rear seats folded it goes into most hatchbacks, SUVs and minivans, and any cargo van, box truck or trailer.
Pick your rental below, or measure your own.

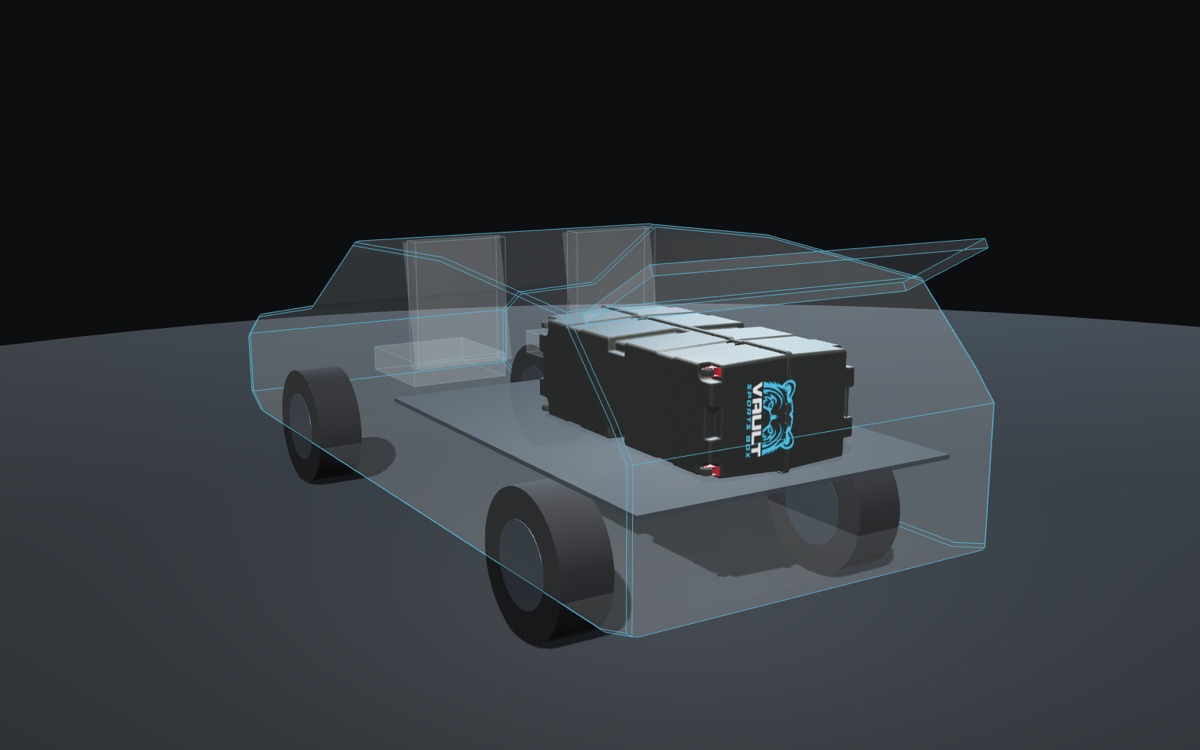

Hatchbacks and wagons
Rear seats folded flat, case laid on its side: most hatch openings are lower than the case is tall.

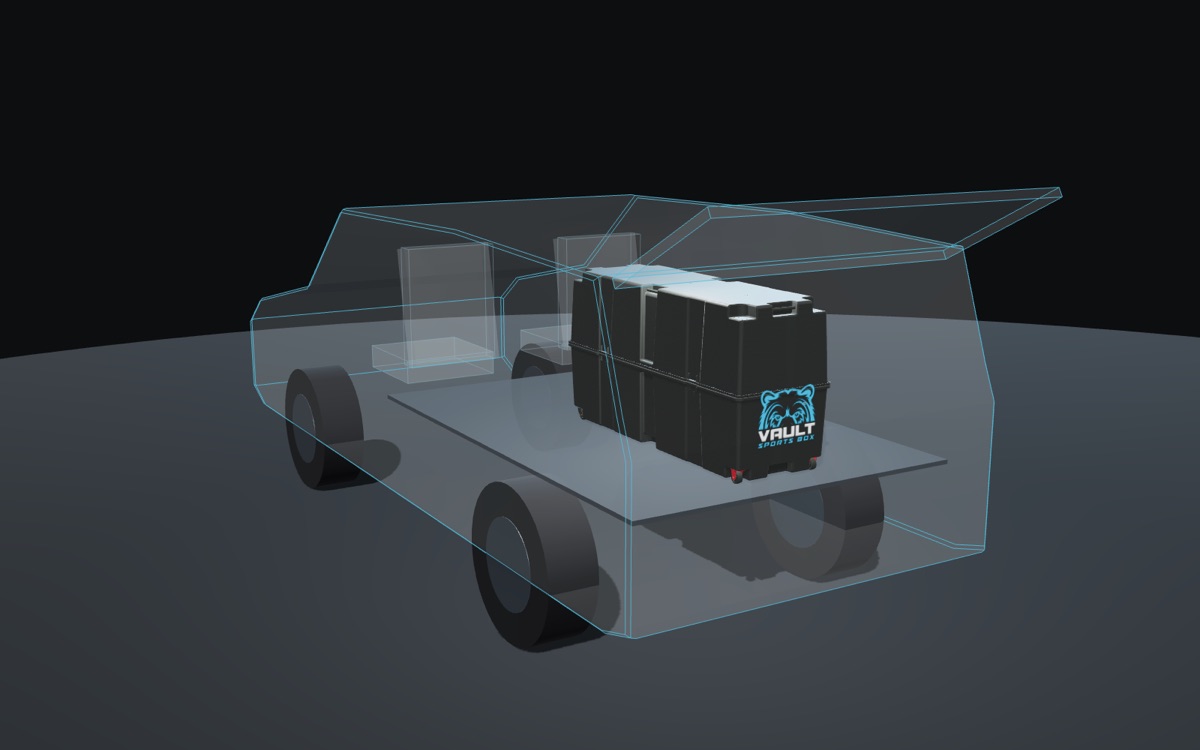

Compact and midsize SUVs
Rear seats folded. Standing up where the tailgate opening is tall enough, otherwise on its side.

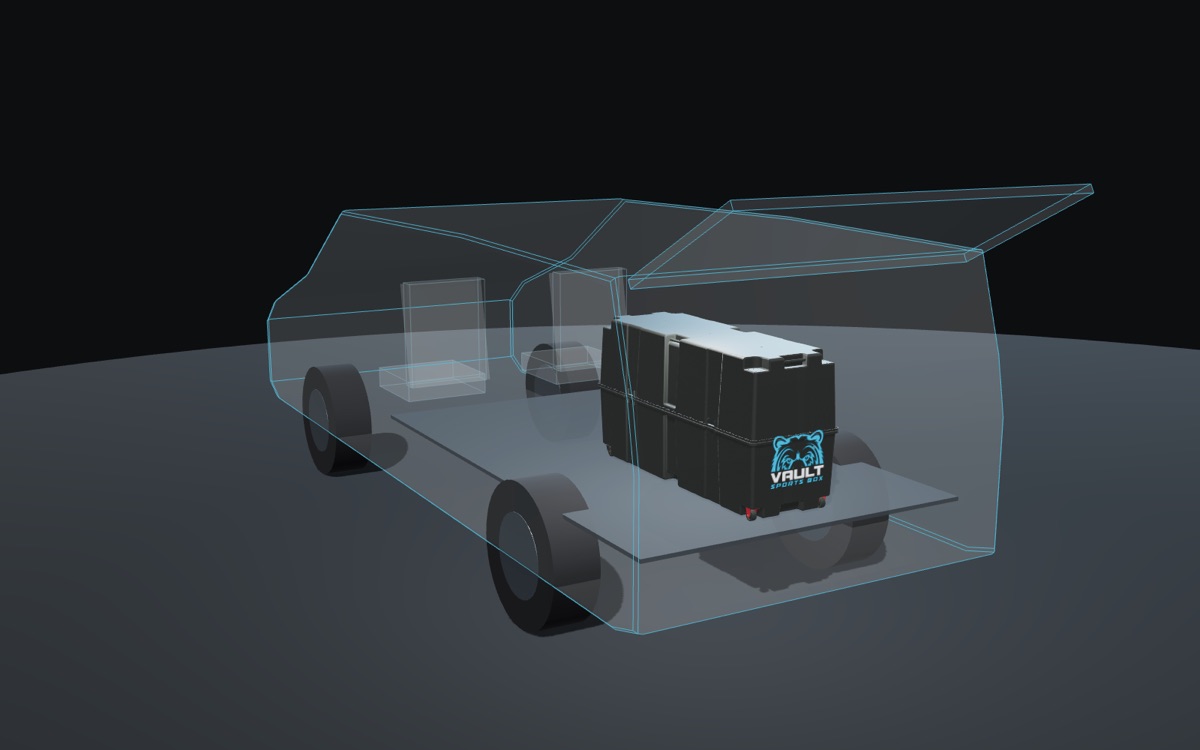

Minivans and full-size SUVs
Usually standing up, often with the second row still in place.

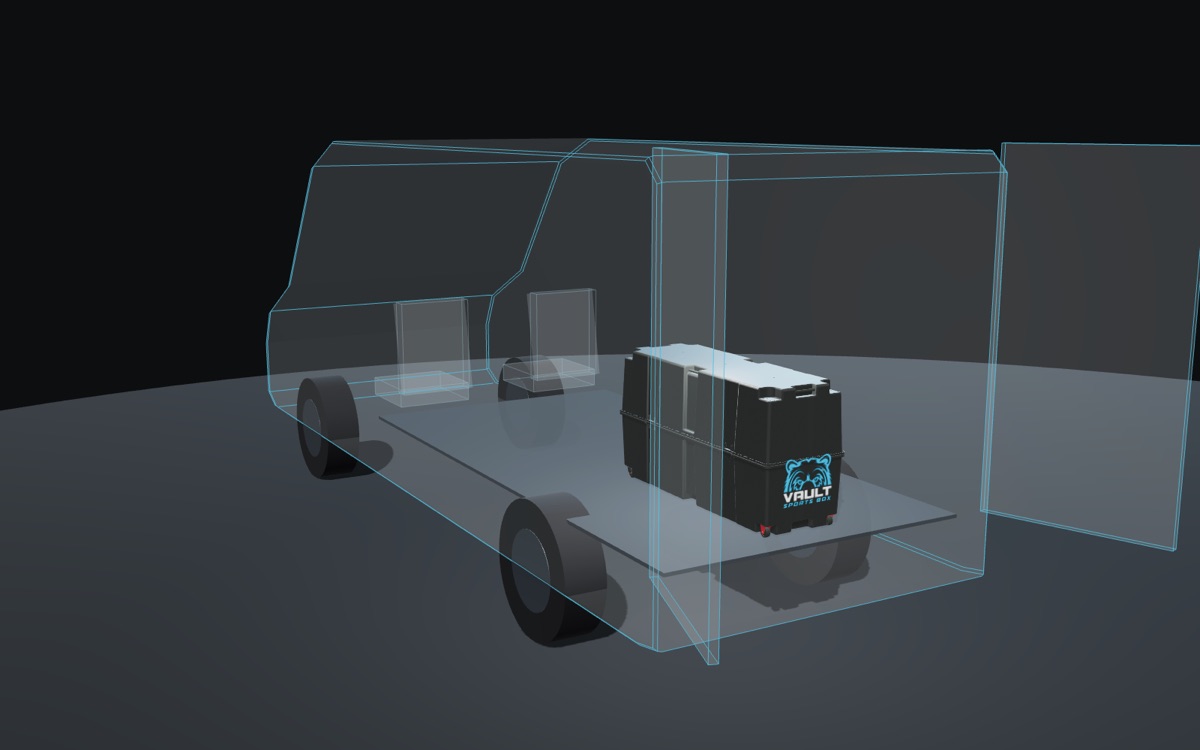

Cargo vans
Standing up between the wheel arches, with room for several.

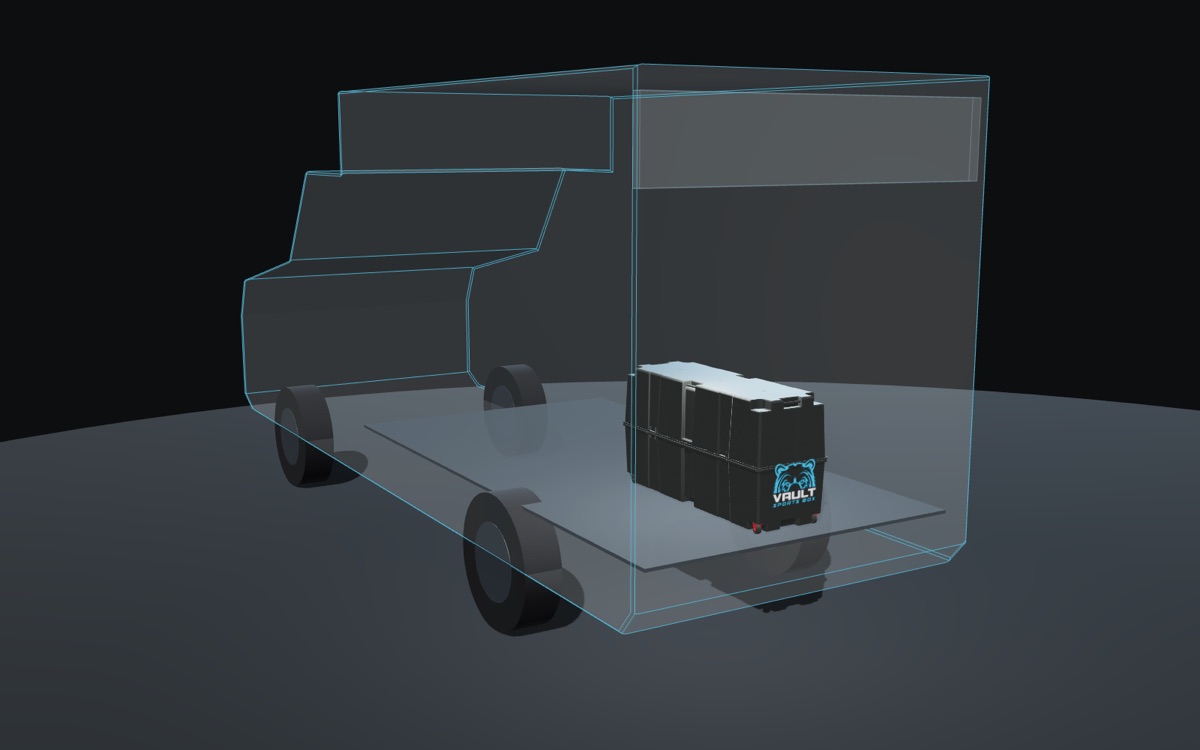

Box trucks
Standing up, strapped to the wall rails. A 10 ft truck takes a team’s worth.
Illustrations drawn from the Vault Pro CAD model inside generic vehicle outlines; not specific models.
Will it fit your rental?
Hyundai Tucson: Fits on its side
With the rear seats folded
Standing upTight: 2 in to spare on cargo height
On its sideFits, at least 8 in to spare
To scale. Case standing; the cyan line is the rear opening.
Length
Width
Height
Seats up
39 in (99 cm)
41 in
31 in
Seats folded
62 in (157 cm)
41 in
31 in
Rear opening
43 in
34 in
Vault Pro
54 in
19 in
29 in
✓ We have loaded a Vault Pro into a compact SUV ourselves (and a customer reports the same), though not necessarily this model.
To scale. Case on its side; the cyan line is the rear opening.
Length
Width
Height
Seats up
27 in (69 cm)
43 in
24 in
Seats folded
65 in (165 cm)
43 in
24 in
Rear opening
40 in
24 in
Vault Pro
54 in
19 in
29 in
Third-party estimate · model years not stated by the source · itemfits.com estimate · read 2026-10-14
Volkswagen Golf: Fits on its side
With the rear seats folded
Standing upWon’t fit: opening height short by 7 in
On its sideFits, at least 3 in to spare
To scale. Case on its side; the cyan line is the rear opening.
Length
Width
Height
Seats up
28 in (71 cm)
42 in
24 in
Seats folded
63 in (160 cm)
42 in
24 in
Rear opening
40 in
22 in
Vault Pro
54 in
19 in
29 in
Third-party estimate · model years not stated by the source · itemfits.com estimate · read 2026-10-14
Vauxhall / Opel Corsa: Tight on its side — measure first
With the rear seats folded
Standing upWon’t fit: opening height short by 9 in
On its sideTight: 1 in to spare on opening height
To scale. Case on its side; the cyan line is the rear opening.
Length
Width
Height
Seats up
24 in (61 cm)
39 in
22 in
Seats folded
57 in (145 cm)
39 in
22 in
Rear opening
37 in
20 in
Vault Pro
54 in
19 in
29 in
Third-party estimate · model years not stated by the source · itemfits.com estimate · read 2026-10-14
Ford Transit Custom (L1): Fits standing up
Cargo area
Standing upFits, at least 20.9 in to spare
On its sideFits, at least 25.8 in to spare
To scale. Case standing; the cyan line is the rear opening.
Length
Width
Height
Cargo area
102.4 in (260 cm)
54.8 in
49.9 in
Rear opening
55.1 in
51.7 in
Vault Pro
54 in
19 in
29 in
✓ We have loaded a Vault Pro into a minivan or cargo van ourselves, though not necessarily this model.
Dealer or spec-database figures · pre-2023 generation, UK dealer-published load dimensions (2602 mm × 1392 mm between arches × 1267 mm; rear opening 1400 × 1314 mm) · Vansdirect load sizing guide · read 2026-10-14
53 ft dry van trailer: Fits standing up
Cargo area
Standing upFits, at least 79 in to spare
On its sideFits, at least 69 in to spare
To scale. Case standing; the cyan line is the rear opening.
Length
Width
Height
Cargo area
630 in (1600 cm)
99 in
108 in
Rear opening
98 in
108 in
Vault Pro
54 in
19 in
29 in
Published by the maker or rental company · typical interior of a 53 ft dry van; individual trailers vary · typical 53 ft dry van interior · read 2026-10-14
Car, SUV and minivan figures are estimates from a third-party fit tool, not the manufacturers, who publish cargo
volume but not the floor length and tailgate opening that decide this. Trims and model years differ, so we only
say Fits with at least 3 in to spare on every dimension; anything closer says measure first.
If you have a tape measure, the checker below gives you a firm answer for the car in front of you.
Measure your own
Fold the rear seats, then measure in inches: the floor from the back of the front seats to the tailgate, the narrowest
width (usually between the wheel arches), the height inside, and the rear opening’s width and height.

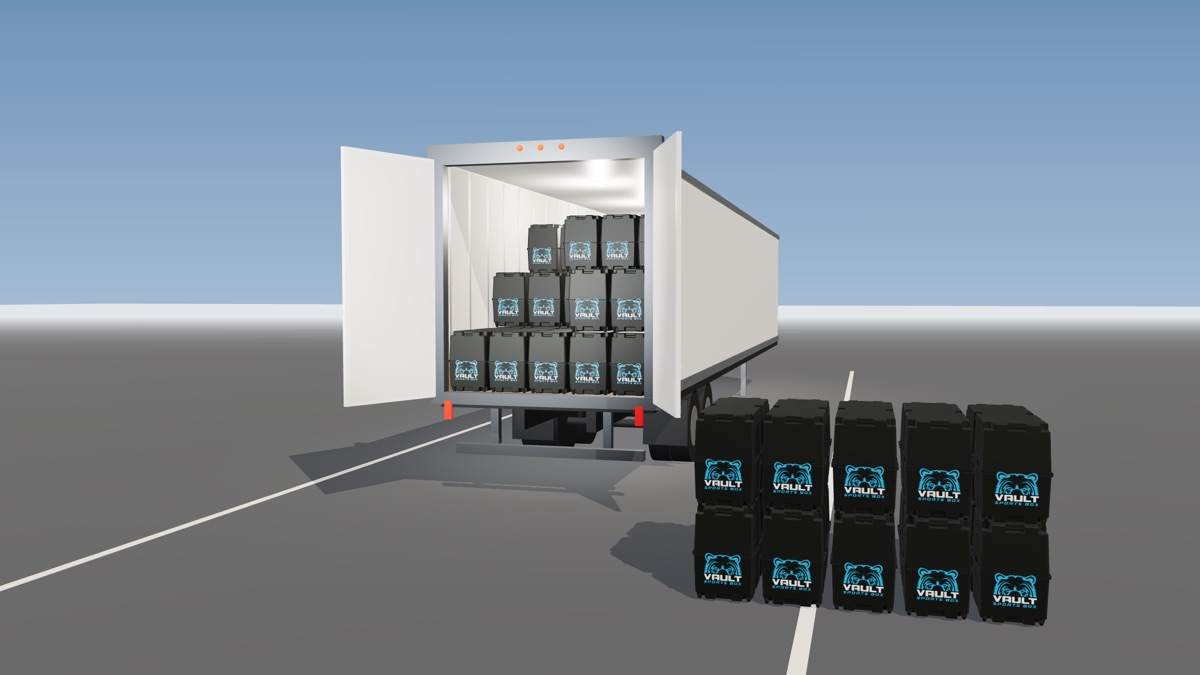

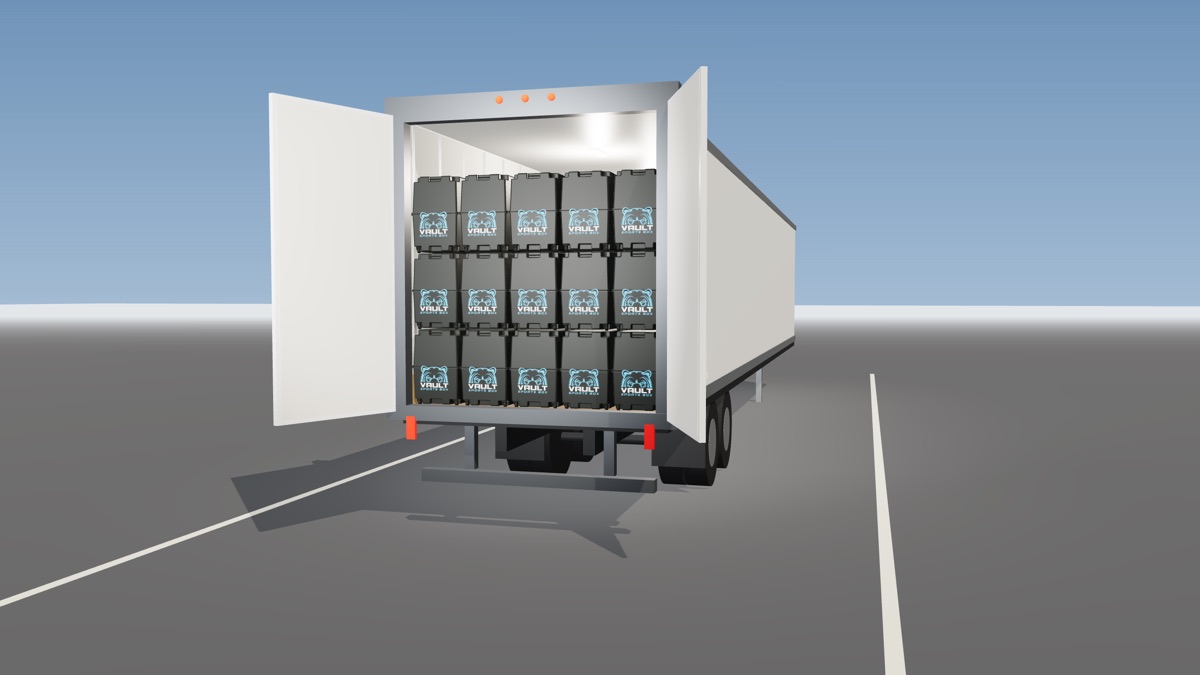

Box trucks and 53 ft trailers
For a team or an event, a 53 ft dry van (about 630 × 99 × 108 in inside) has floor space for 11 rows of 5 cases, 55 to a
layer. A 10 ft rental box truck takes several standing up between its rails. Strap every case to the walls.
